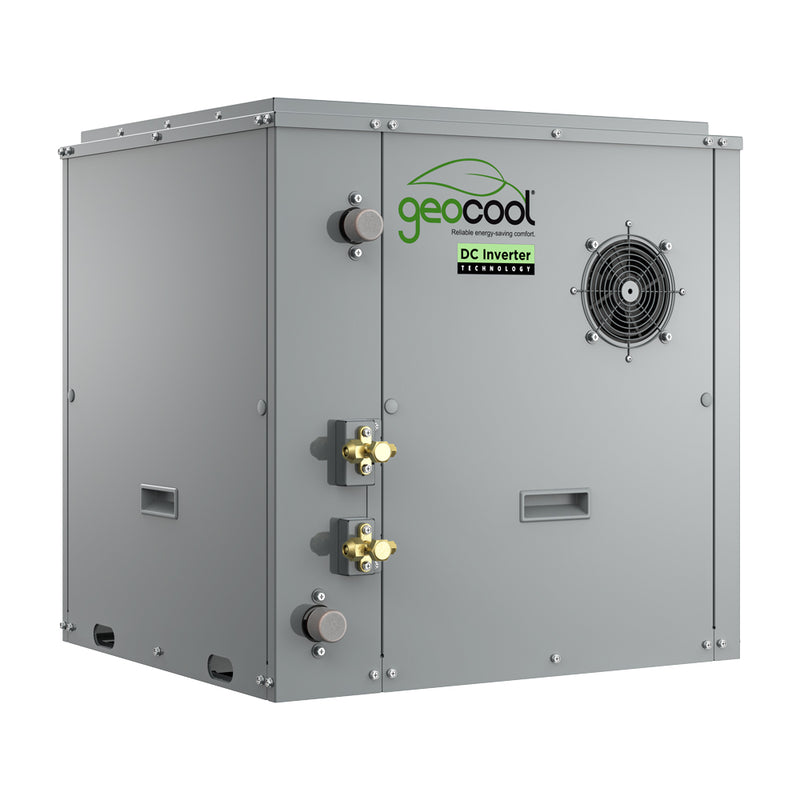

MRCOOL GeoCool 48K BTU 4T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor (GCSHPM048IN)

Embrace comfort with the GeoCool® all DC Inverter Technology. Equipped with the highprecision Electronic Expansion Valve, allowing for more accurate temperature control while also keeping the utility bill down. The flexibility of four independent modules makes it easy to meet the installation requirements of different air outlet methods and applications. Space constraints are less of an issue when a custom built layout is an option! For a long term solution with lower maintenance costs, design your own GeoCool® Inverter Series Geothermal unit

Features

• • Up to 70 EER
  • DC Inverter technology
  • Closed loop - Full load - Cooling Current Input: 13 Heating Current Input: 17
  • Open Loop- Full Load - Cooling Current Input: 10 Heating Current Input: 17
  • Open loop Operating Pressure Range: Min: 25 psi
  • Max: 50 psi
  • Closed loop Operating Pressure Range: Min: 25 psi
  • Max: 50 psi
  • Cooling Operating Range: Inlet: 44.6F - 107.6F
  • Ambient: 50F - 100.4F
  • Return Air: 60.8F - 89.6F
  • Heating Operating Range: Inlet 21.2F - 89.6F
  • Ambient: 39.2F - 84.2F
  • Return Air: 50F - 80.6F
  • Open loop - Full load - EER: 27.02 COP: 4.2

  Specifications

  • Cooling: Up to 50500
  • Heating: Up to 46500
  • Voltage: 208 / 230
  • Refrigerant: R-410A

  Resources: Installation Manual
