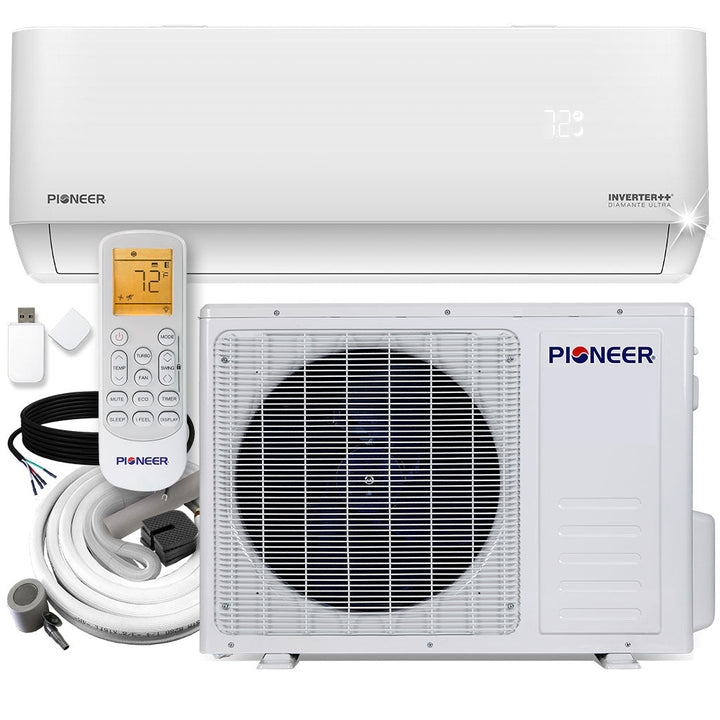

Pioneer® Diamante Ultra 24,000 BTU 20 SEER 230V Ductless Mini-Split Inverter++ W

In Stock
$2,348.00 USD
Shipping calculated at checkout.

Overview

Summary

  • Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 23,000 BTU/H with 20 SEER/12.5 EER efficiency
  • Heating capacity: 24,000 BTU/H with 10 HSPF/3.2 COP efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • Wireless Internet Access Included (Via Free Smartphone App)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $152.00
    • Heating: $507.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit

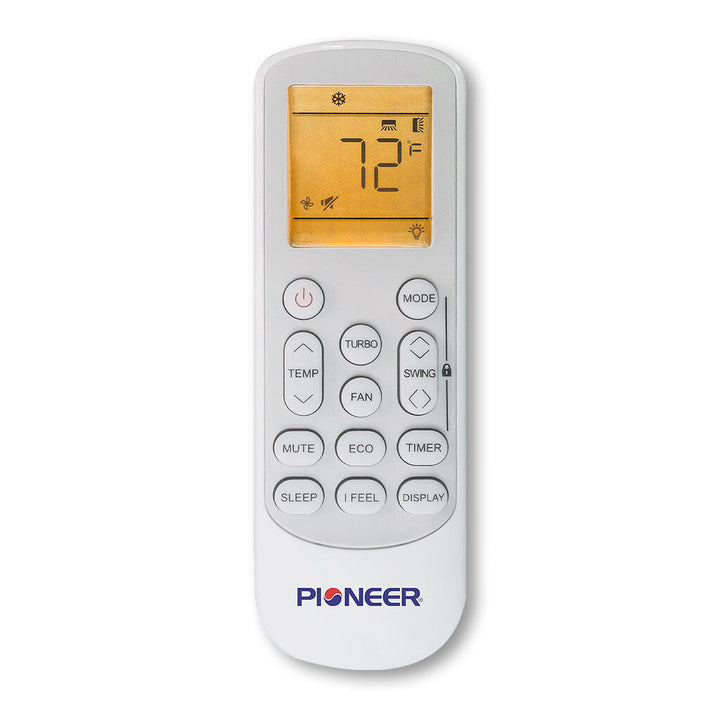

  • Wireless Remote Control (with wall holder and batteries)

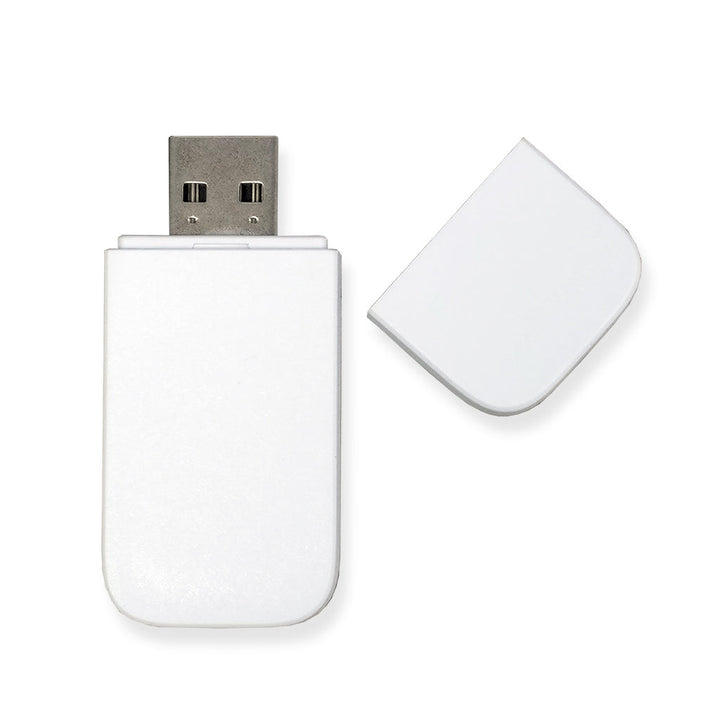

  • Internet Control Module

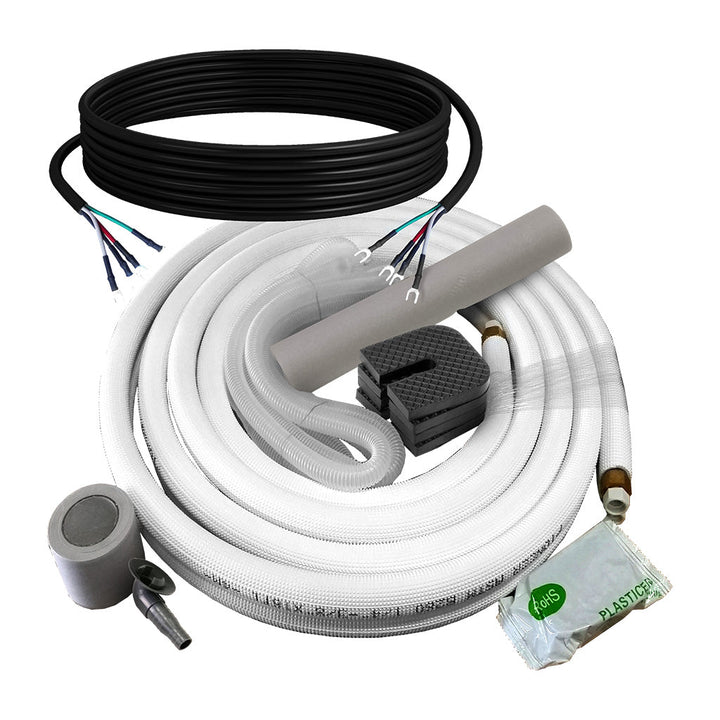

  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts (Extendable to up to 7 years)
  • 5 years for Compressor (Extendable to up to 10 years)

Features

[[FEATURES]]

Technical Information

Performance Data

  • Power Supply: 230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 23,000 BTU/h (1.9 Ton)
  • Rated Power Input (Cooling): 1920W
  • Cooling SEER: 20 BTU/w
  • Cooling EER: 12.5 BTU/w
  • Heating Rated Capacity: 24,000 BTU/h (2 Ton)
  • Rated Power Input (Heating): 2050W
  • Heating HSPF4: 10 BTU/w
  • Heating C.O.P.: 3.2 W/W
  • Refrigerant Type: R410A
  • Recommended Application Area: 600~950 Sq.Ft

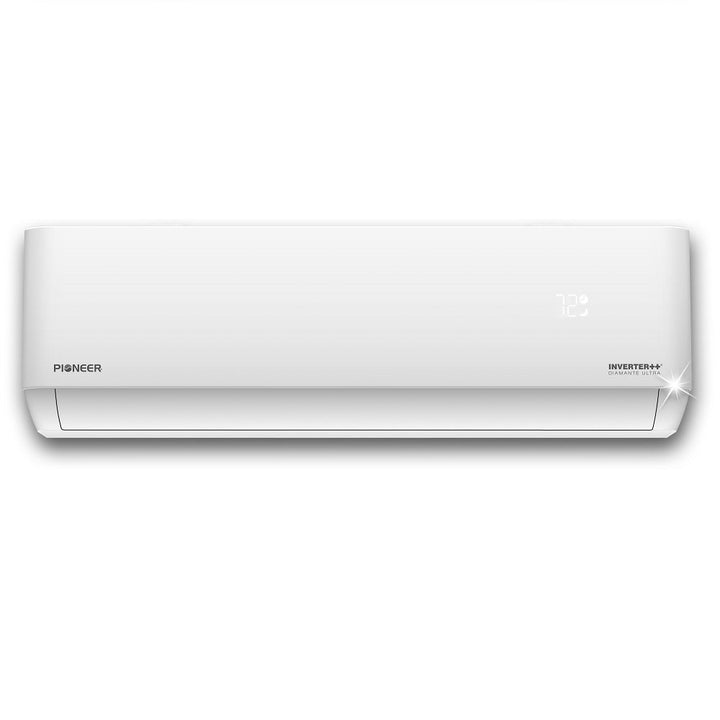

Indoor Unit Data

  • Part Number: WT024GLFI22HLD
  • Air Flow (Hi): 735 / 618 / 529 CFM
  • Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
  • Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
  • Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
  • Net / Gross Weight: 30.9 / 35.3 Lbs

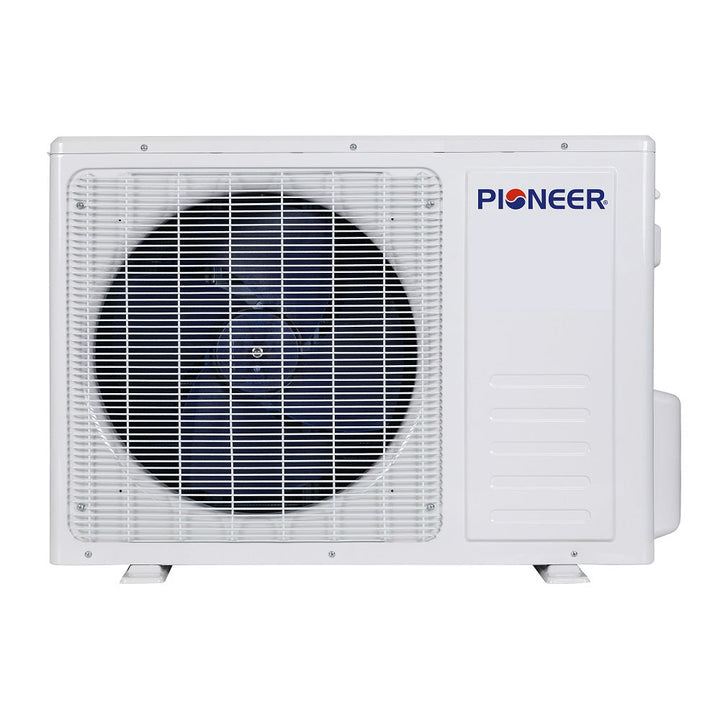

Outdoor Unit Data

  • Part Number: YN024GLFI22RPD
  • Sound Level: 58 dB(A)
  • Net Dimensions (WDH): 35-7/8 x 15-5/8 x 31-5/8 Inches
  • Carton Dimensions (WDH): 40-1/2  x 19-1/8 x 33-1/2 Inches
  • Net / Gross Weight: 104.7 / 119.1 lbs
  • Electrical Circuit Size: 20A (double-pole)
