Pioneer® Diamante Series 12,000 BTU 19 SEER 230V Ductless Mini-Split Air Conditi
Out of Stock
Overview
Summary
• High efficiency Diamante ductless mini split heat pump system
• Cooling capacity: 12,000 BTU/H (19 SEER / 10.5 EER)
• Heating capacity: 12,500 BTU/H (9.5 HSPF / 3.2 COP)
• Voltage: 208~230V, 60Hz, 1Ph
• Wall-mounted air conditioning and heating system
• Variable speed DC inverter operation
• Low ambient capability (down to -13°F)
AHRI Estimated Annual Operating Costs
• Cooling: $83.00
• Heating: $278.00

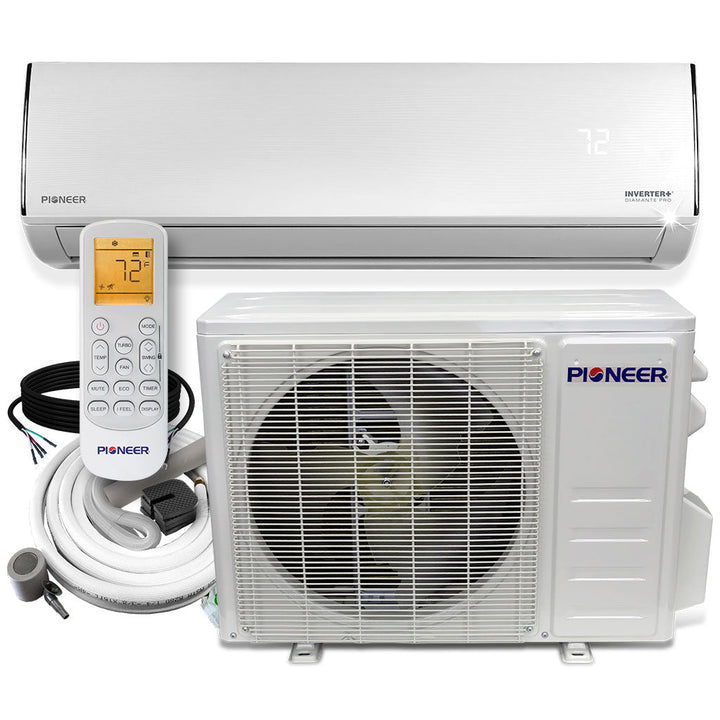

What's Included
• Indoor unit
• Outdoor unit

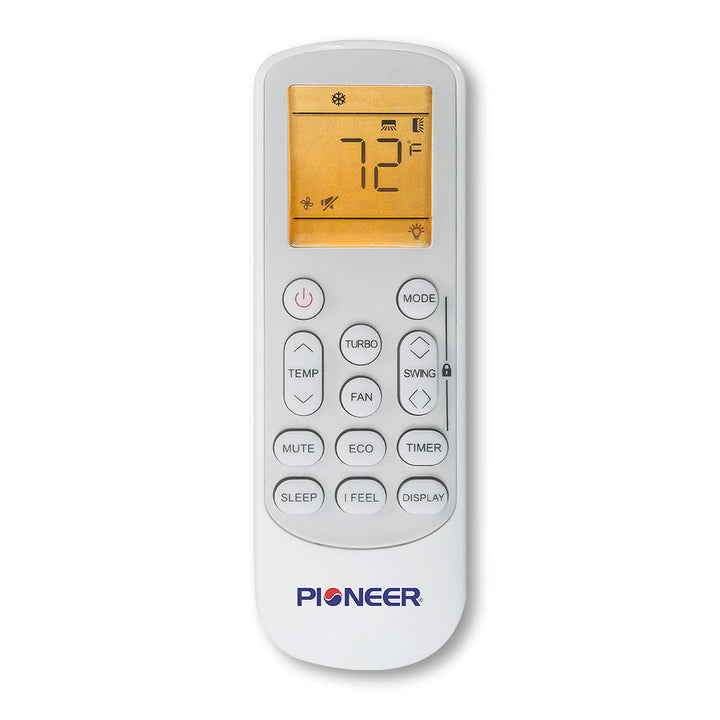

• Wireless remote control (with wall holder and batteries)

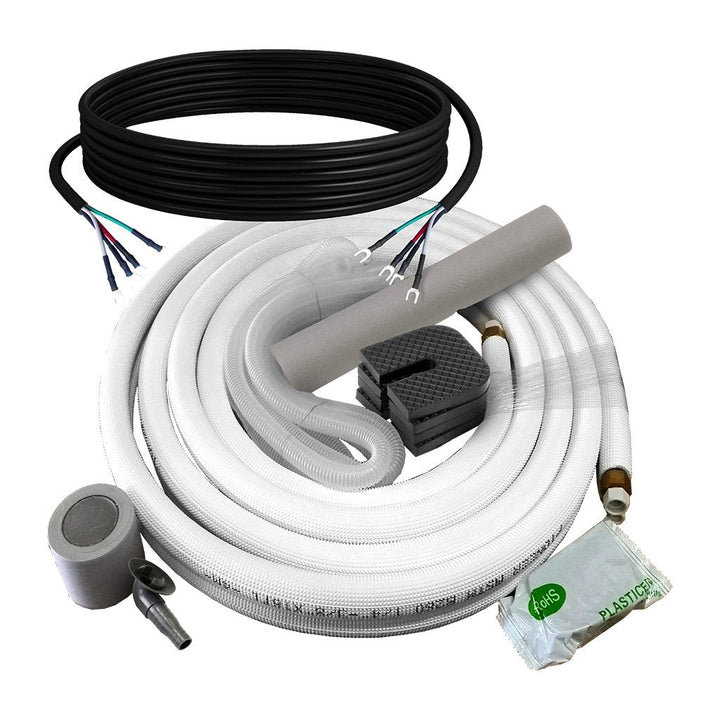

• 16 ft. copper lines
• 16 ft. electrical wire
• 10 ft. drain hose (indoor/outdoor)
• Wall passage sleeve
• Putty for wall hole
• Leak guard sealer
• Wrapping tape
• Installation manual
• User’s manual
Our Guarantee
• 5-year warranty for parts
• 5-year warranty for compressor
Features
Technical Information
Performance Data
• Power supply: 208~230V, 60Hz, 1Ph
• Cooling rated capacity: 12,000 BTU/h
• Cooling capacity range: 3,700 to 13,000 BTU/h
• SEER: 19
• EER: 10.5
• Heating rated capacity: 12,500 BTU/h
• Heating capacity range: 3,500 to 13,500 BTU/h
• HSPF4: 9.5
• COP: 3.2
• Refrigerant type: R410A (34.2 oz)
• Suitable area: 200 to 450 sq. ft.

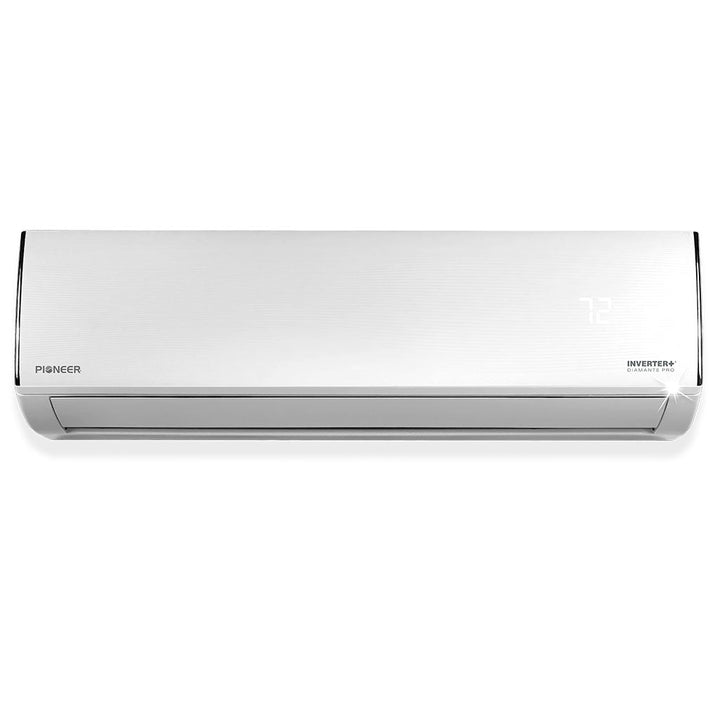

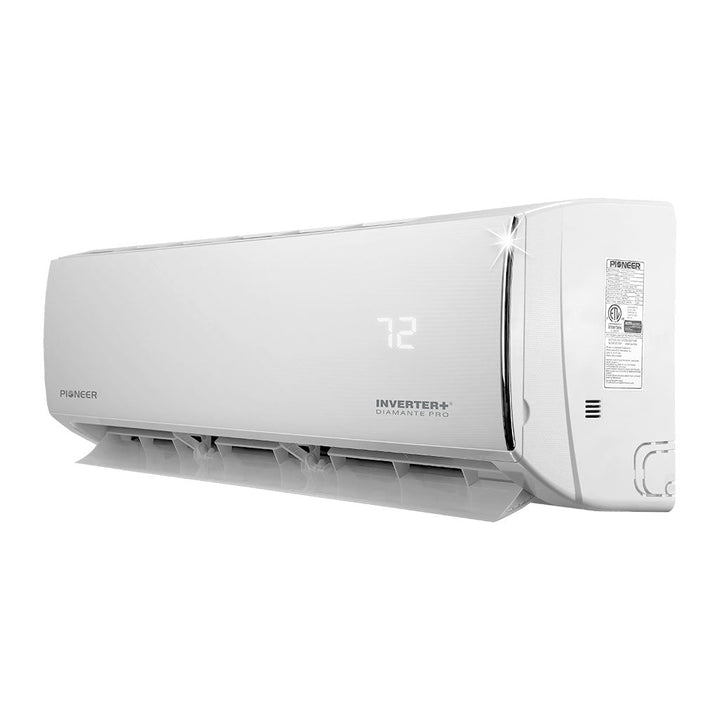

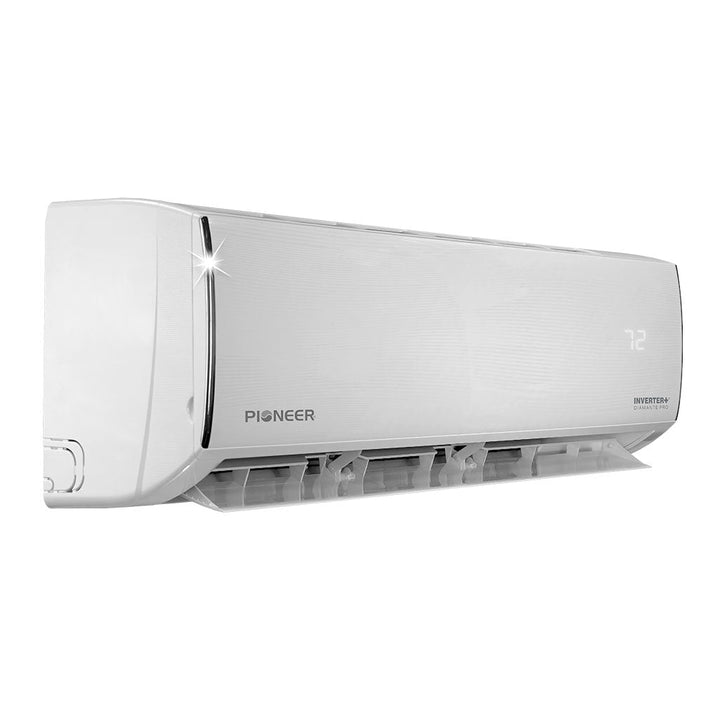

Indoor Unit Data
• Model: WT012GLFI19HLD
• Airflow (Hi / Med / Lo): 383 / 318 / 253 CFM
• Sound level (Hi / Med / Lo): 39 / 34 / 29 dB(A)
• Dimensions (W x D x H): 32 x 8.13 x 11.5 in
• Carton size: 34.88 x 11 x 14.38 in
• Weight: 19.8 lbs (net), 24.2 lbs (gross)

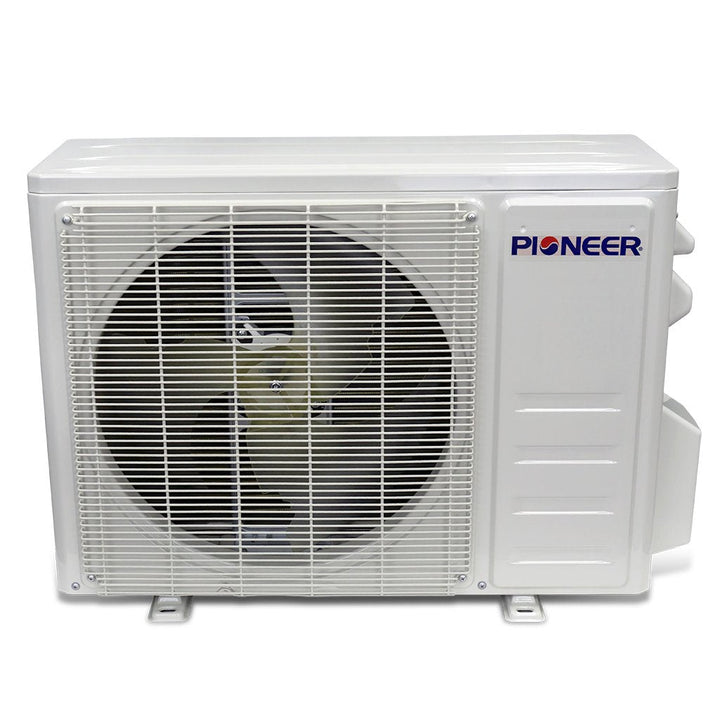

Outdoor Unit Data
• Model: YN012GLFI19RPD
• Breaker required: 15A (double-pole)
• Sound level: 52 dB(A)
• Dimensions (W x D x H): 28.13 x 11.38 x 19.63 in
• Carton size: 33 x 13.38 x 21.63 in
• Weight: 57.3 lbs (net), 66.3 lbs (gross)
