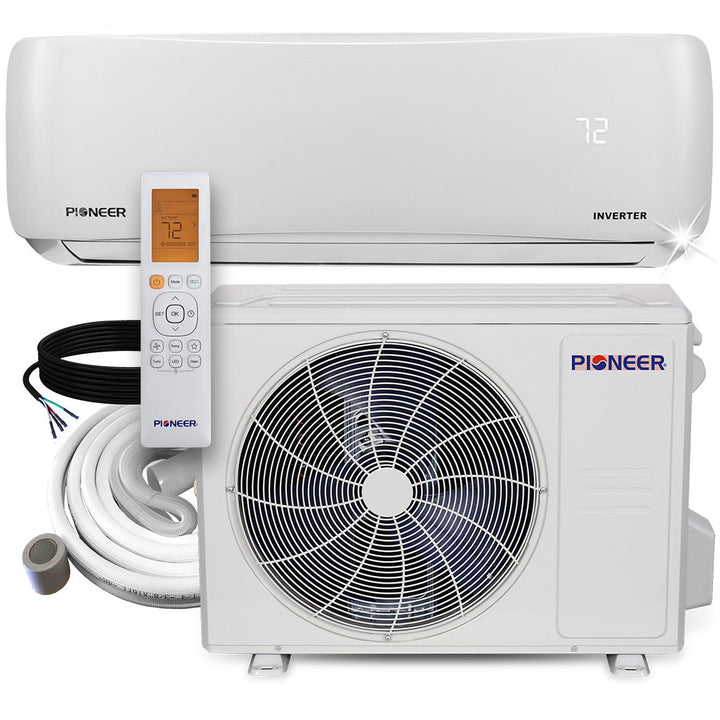

Pioneer® 18,000 BTU 19 SEER 230V Ductless Mini-Split Inverter + Air Conditioner
In StockOverview
Summary
• Ultra-high efficiency Pioneer® 18,000 BTU 19 SEER 230V ductless mini split inverter and heat pump system
• Cooling capacity: 18,000 BTU/H (19 SEER / 10.5 EER)
• Heating capacity: 18,800 BTU/H (10 HSPF / 2.93 COP)
• Voltage: 208~230V, 60Hz, 1Ph
• High wall-mounted air conditioning and heating system
• Variable speed DC inverter operation mode
• Custom-length copper line set with flare connections
AHRI Estimated Annual Operating Costs
• Cooling: $125.00
• Heating: $397.00
What's Included
• Indoor unit
• Outdoor unit
• Wireless remote control
• Installation kit options
• Flare connection leak guard sealer
• Installation manual
• User’s manual
• Manufacturer warranty
Our Guarantee
• 5-year parts limited warranty
• 5-year compressor limited warranty
Technical Information
Certifications
Performance Data
• Power supply: 208~230V, 60Hz, 1Ph
• Cooling rated: 18,000 BTU/h
• Cooling range: 3,900 to 20,000 BTU/h
• SEER: 19
• EER: 10.5
• Heating rated: 18,800 BTU/h
• Heating range: 6,300 to 19,400 BTU/h
• HSPF4 / HSPF5: 10 / 8.3
• Refrigerant: R410A (47.6 oz)
• Suitable area: 400 to 650 sq. ft.
Indoor Unit Data
• Model: WS018GMFI20HLD
• Airflow (Hi / Med / Lo): 388 / 259 / 218 CFM
• Sound (Hi / Med / Lo): 43.5 / 34.5 / 30.0 dB(A)
• Dimensions (W x D x H): 38 x 8.5 x 12.5 in
• Carton size: 41.13 x 12 x 16.13 in
• Weight: 23.8 lbs (net), 31.5 lbs (gross)

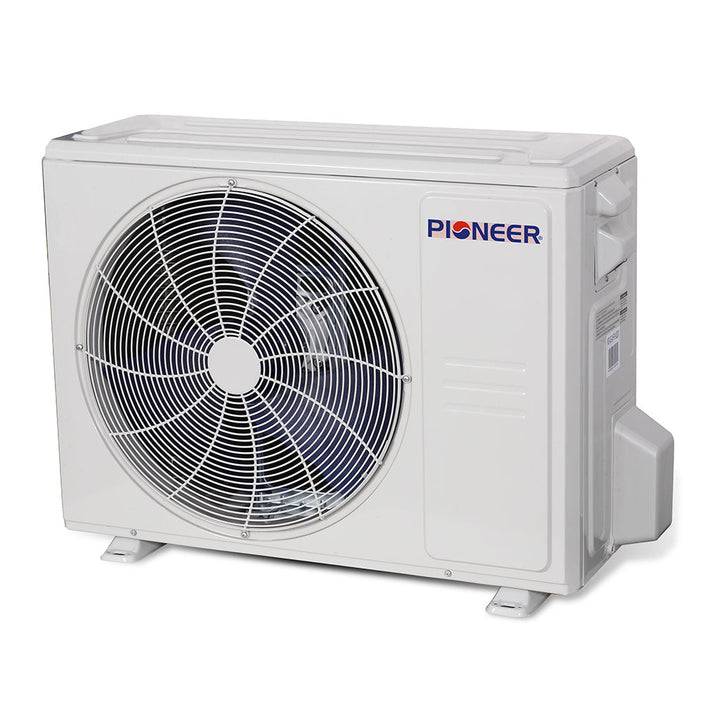

Outdoor Unit Data
• Model: YN018GMFI20RPD
• Breaker required: 20A double-pole
• Sound level: 57 dB(A)
• Dimensions (W x D x H): 31.63 x 13 x 21.88 in
• Carton size: 36 x 14.63 x 24.25 in
• Weight: 73.9 lbs (net), 79.8 lbs (gross)
Manuals & Downloads
