Pioneer® 12,000 BTU 20 SEER 115V Ductless Mini-Split Inverter+ Air Conditioner H

Overview

Summary
• Ultra high efficiency Inverter+ ductless mini split heat pump system
• Cooling capacity: 12,000 BTU/H (20 SEER / 10.3 EER)
• Heating capacity: 12,000 BTU/H (10.5 HSPF / 3.13 COP)
• Voltage: 110~120V, 60Hz, 1Ph
• Wall-mounted air conditioning and heating system
• Variable speed DC inverter operation mode
• Custom-length copper line set with flare connections

AHRI Estimated Annual Operating Costs
• Cooling: $79.00
• Heating: $242.00

What’s Included
• Indoor unit
• Outdoor unit
• Wireless remote control

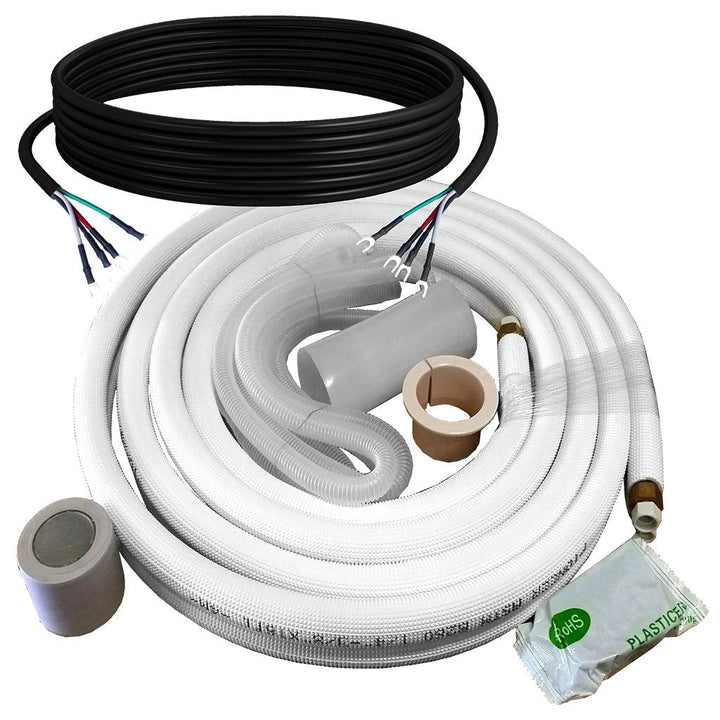

• Installation kit options
• Flare connection leak guard sealer
• Installation manual
• User’s manual
• Manufacturer warranty

Our Guarantee
• 5-year parts limited warranty
• 5-year compressor limited warranty

Certifications

Performance Data
• Power supply: 110~120V, 60Hz, 1Ph
• Cooling rated: 12,000 BTU/h
• Cooling range: 3,700–13,000 BTU/h
• Cooling SEER: 20
• Cooling EER: 10.3
• Heating rated: 12,000 BTU/h
• Heating range: 3,500–13,500 BTU/h
• Heating HSPF4 / HSPF5: 10.5 / 8.4
• Refrigerant: R410A
• Suitable area: 300–450 sq. ft.

Indoor Unit Data
• Model: WS012AMFI20HLD
• Airflow (Hi / Med / Lo): 309 / 206 / 176 CFM
• Sound (Hi / Med / Lo): 41.5 / 30.5 / 26.0 dB(A)
• Dimensions (W x D x H): 31.57 x 7.44 x 11.69 in
• Carton size: 34.45 x 11.22 x 14.96 in
• Weight: 20 lbs (net), 25 lbs (gross)

Outdoor Unit Data
• Model: YN012AMFI20RPD
• Sound level: 55.5 dB(A)
• Dimensions (W x D x H): 30.1 x 11.8 x 21.81 in
• Carton size: 34.8 x 13.25 x 24 in
• Weight: 62.2 lbs (net), 67.7 lbs (gross)

Manuals & Downloads

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
