Pioneer® 24,000 BTU 18 SEER 230V Ductless Mini-Split Inverter+ Air Conditioner H

Overview

Summary
• Ultra high efficiency Inverter+ ductless mini split heat pump system
• Cooling capacity: 24,000 BTU/H (18 SEER / 9 EER)
• Heating capacity: 24,000 BTU/H (9.8 HSPF / 3.03 COP)
• Voltage: 208~230V, 60Hz, 1Ph
• High wall-mounted air conditioning and heating system
• Variable speed DC inverter operation mode
• Custom-length copper line set with flare connections

AHRI Estimated Annual Operating Costs
• Cooling: $176.00
• Heating: $518.00

What's Included
• Indoor unit
• Outdoor unit
• Wireless remote control
• Various installation kit options available
• Flare connection leak guard sealer
• Installation manual
• User’s manual
• Manufacturer warranty

Our Guarantee
• 5-year parts limited warranty
• 5-year compressor limited warranty

Certifications

Performance Data
• Power supply: 208~230V, 60Hz, 1Ph
• Cooling rated: 24,000 BTU/h
• Cooling range: 6,704 to 25,300 BTU/h
• SEER: 18.0
• EER: 9.0
• Heating rated: 24,000 BTU/h
• Heating range: 6,900 to 28,100 BTU/h
• HSPF4 / HSPF5: 9.8 / 8.0
• Refrigerant type: R410A (63 oz)
• Suitable area: 650 to 900 sq. ft.

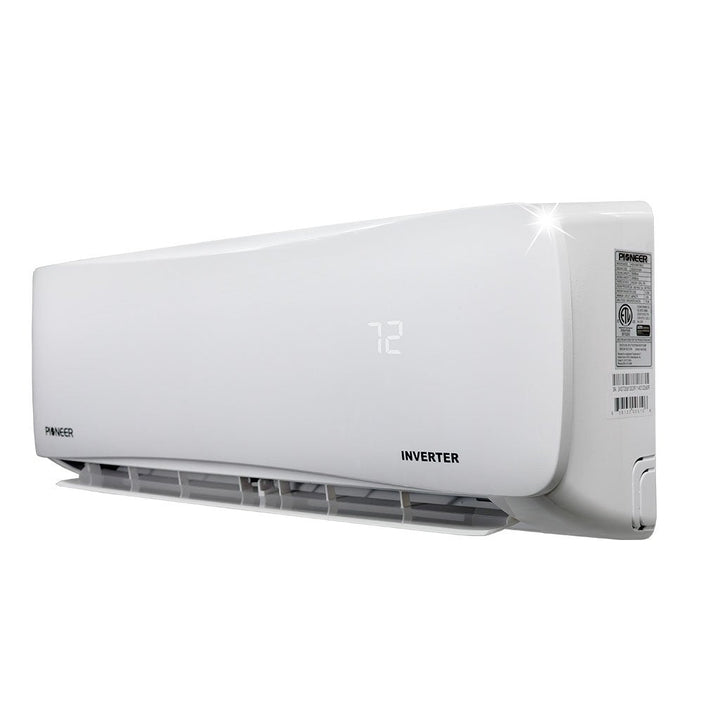

Indoor Unit Data
• Model number: WS024GMFI20HLD
• Airflow (Hi / Med / Lo): 588 / 450 / 353 CFM
• Sound (Hi / Med / Lo): 45.5 / 39.5 / 35.0 dB(A)
• Unit dimensions (W x D x H): 42.5 x 8.88 x 13.13 in
• Carton dimensions (W x D x H): 45.5 x 16.38 x 12.63 in
• Weight: 30 lbs (net), 38.6 lbs (gross)

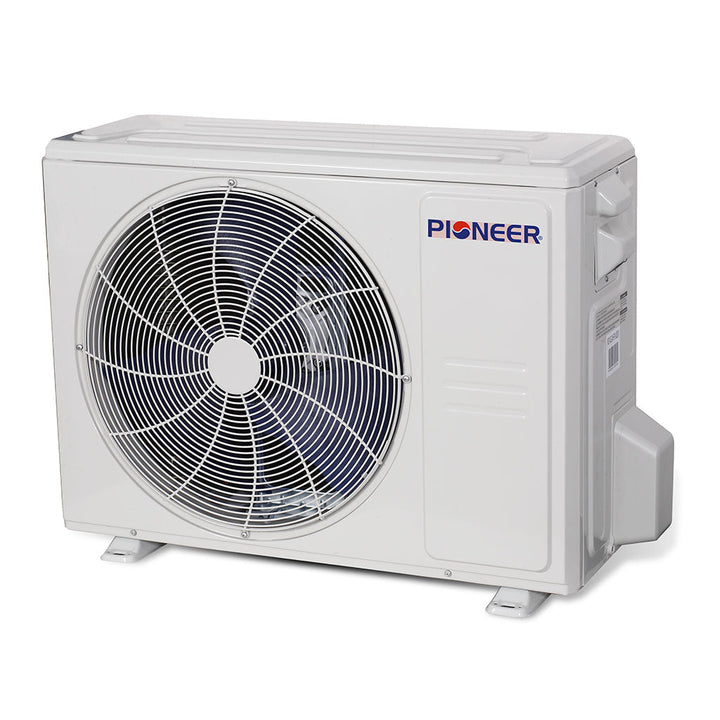

Outdoor Unit Data
• Model number: YN024GMFI20RPD
• Sound level: 60.0 dB(A)
• Breaker required: 20A double-pole
• Unit dimensions (W x D x H): 35 x 13.5 x 26.5 in
• Carton dimensions (W x D x H): 39.13 x 15.63 x 29.13 in
• Weight: 97.9 lbs (net), 104.6 lbs (gross)

Manuals & Downloads

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
