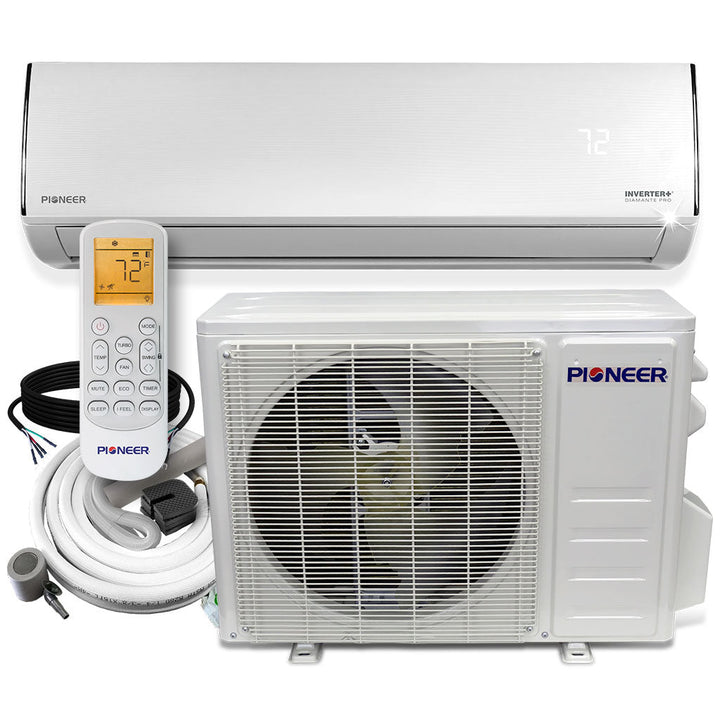

Pioneer® Diamante Series 12,000 BTU 20 SEER 115V Ductless Mini-Split Air Conditi
In StockOverview
Summary
• High efficiency Diamante ductless mini split heat pump system
• Cooling capacity: 12,000 BTU/H (20 SEER / 10.5 EER)
• Heating capacity: 12,000 BTU/H (10 HSPF / 3.0 COP)
• Voltage: 110/120V, 60Hz, 1Ph
• Wall-mounted air conditioning and heating system
• Variable speed DC inverter operation
• Low ambient capability (-13°F)
AHRI Estimated Annual Operating Costs
• Cooling: $79.00
• Heating: $254.00
What's Included

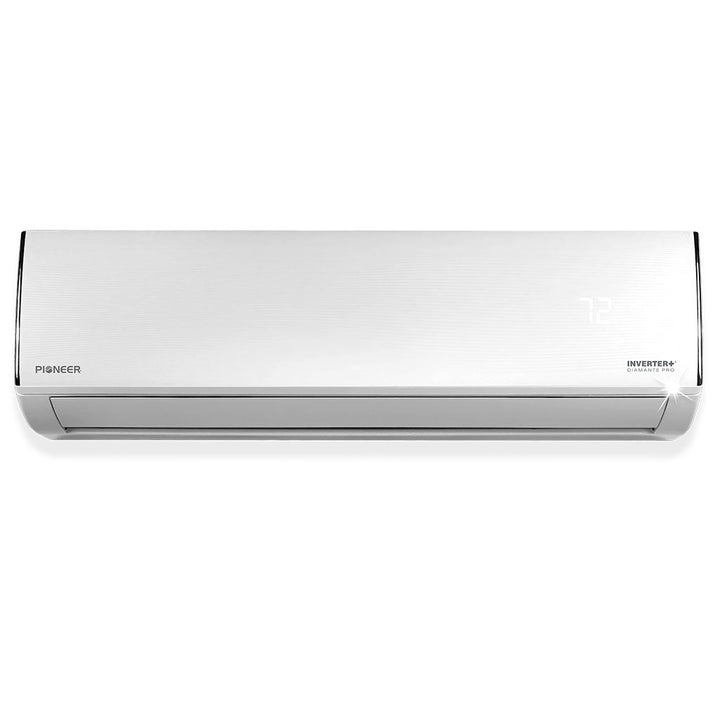

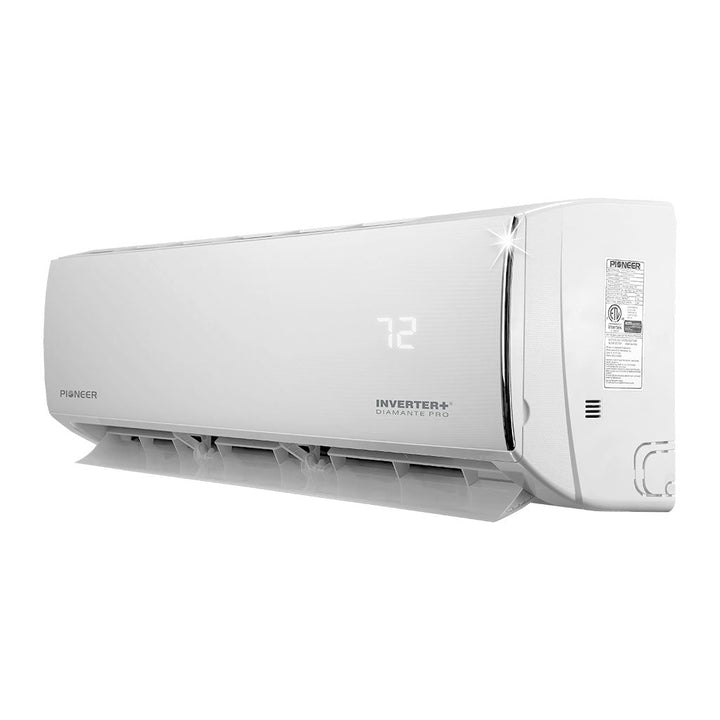

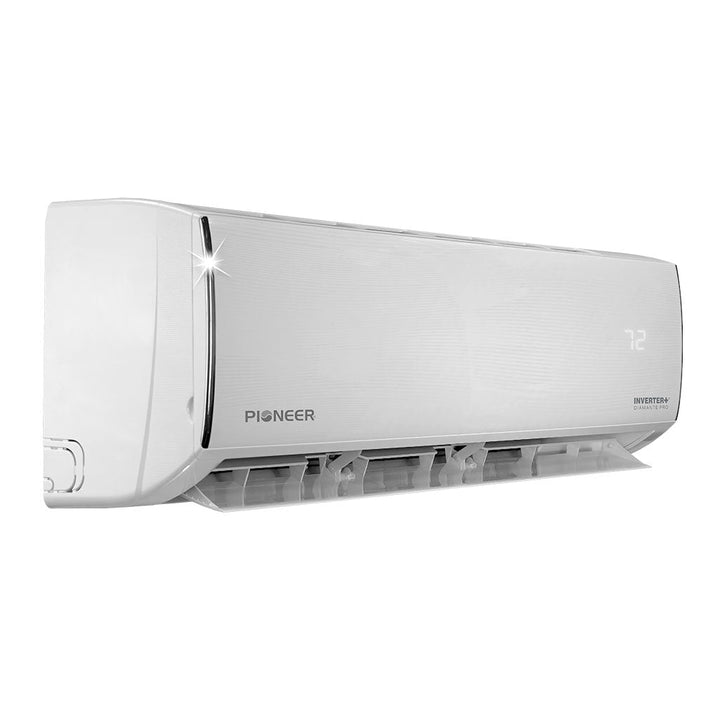

• Indoor unit
• Outdoor unit

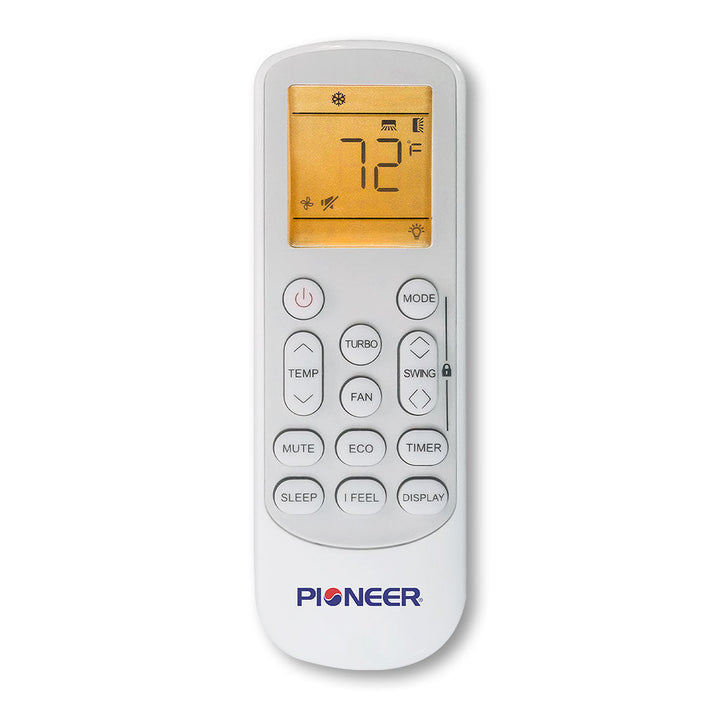

• Wireless remote control (with wall holder and batteries)

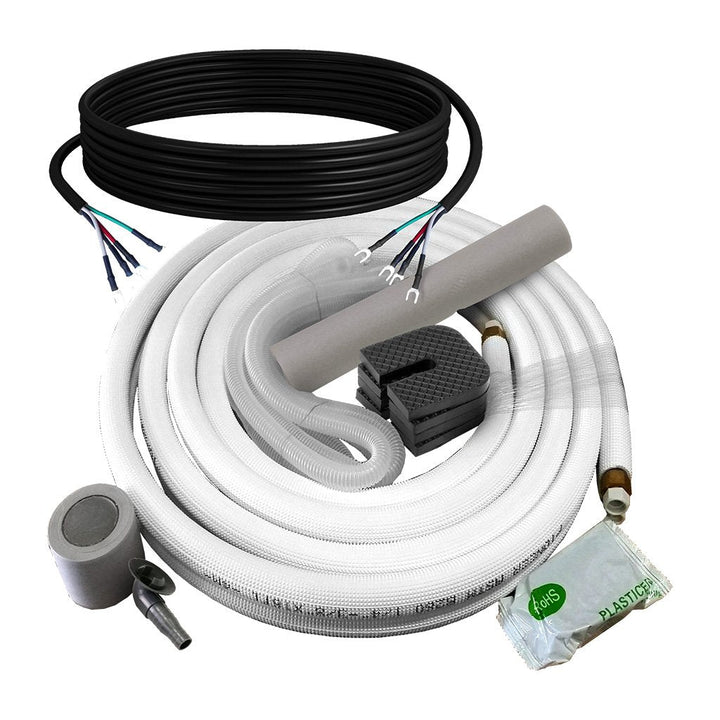

• 16 ft. copper lines
• 16 ft. electrical wire
• 10 ft. drain hose for indoor/outdoor use
• Wall passage sleeve
• Putty for wall hole
• Leak guard sealer
• Wrapping tape
• Installation manual
• User’s manual
Our Guarantee
• 5-year warranty for parts
• 5-year warranty for compressor
Features
Technical Information
Performance Data
• Power supply: 110~120V, 60Hz, 1Ph
• Cooling rated capacity: 12,000 BTU/h
• Cooling capacity range: 3,700 to 13,000 BTU/h
• SEER: 20
• Heating rated capacity: 12,000 BTU/h
• Heating capacity range: 3,500 to 13,500 BTU/h
• HSPF4 / HSPF5: 10 / 7.8
• Refrigerant type: R410A (30 oz)
• Suitable area: 200 to 450 sq. ft.
Indoor Unit Data
• Model number: WT012ALFI19HLD
• Airflow (Hi / Med / Lo): 383 / 318 / 253 CFM
• Sound level (Hi / Med / Lo): 39 / 34 / 29 dB(A)
• Dimensions (W x D x H): 32 x 8.13 x 11.5 in
• Carton size: 34.88 x 11 x 14.38 in
• Weight: 19.8 lbs (net), 24.2 lbs (gross)
Outdoor Unit Data
• Model number: YN012ALFI19RPD
• Breaker required: 20A (single-pole)
• Sound level: 52 dB(A)
• Dimensions (W x D x H): 28.63 x 12 x 21.63 in
• Carton size: 33.5 x 14.13 x 24 in
• Weight: 65 lbs (net), 71.6 lbs (gross)
Manuals & Documents
