Pioneer® 24,000 BTU 21 SEER 230V Ductless Mini-Split Inverter++ Air Conditioner

In Stock
$1,969.00 USD
Shipping calculated at checkout.

Overview

Summary

  • Ultra High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 24,000 BTU/H with 21 SEER/12.5 EER efficiency
  • Heating capacity: 26,000 BTU/H with 10 HSPF/3.05 COP efficiency
  • Voltage: 208~230 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $151.00
    • Heating: $550.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 9,200~25,000 BTU/h
  • Cooling SEER: 21 BTU/w
  • Cooling EER: 12.5 BTU/w
  • Heating Rated Capacity: 26,000 BTU/h
  • Heating Capacity Range: 10,350~26,410 BTU/h
  • Heating HSPF: 10.0 BTU/w
  • Heating C.O.P.: 3.05 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 650~900 Sq.F

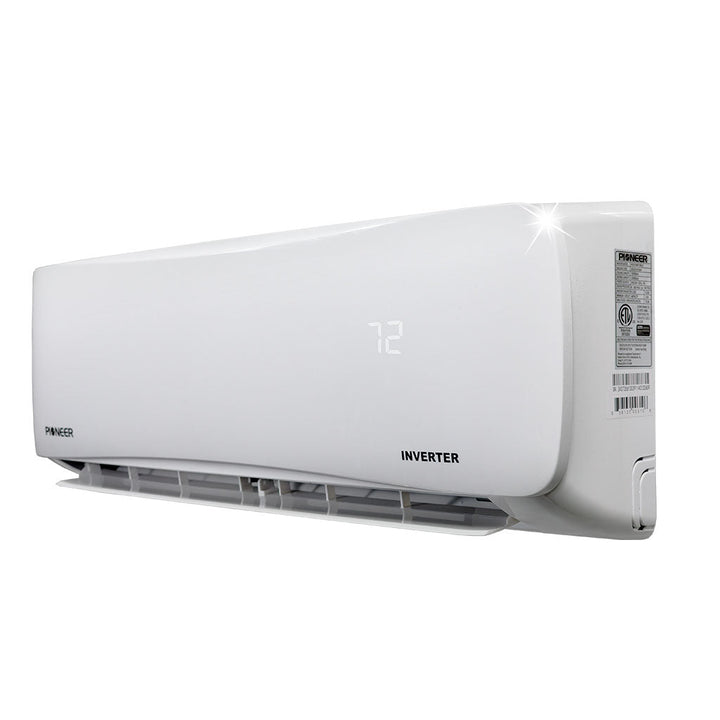

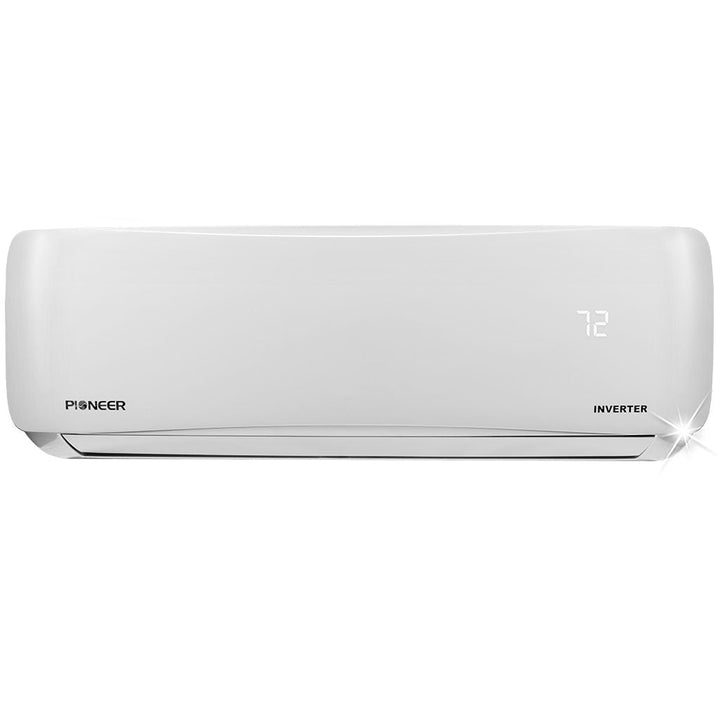

Indoor Unit Data

  • Part Number: WS024GMFI22HLE
  • Air Flow (Hi/Med/Lo): 618 / 471 / 324 CFM
  • Sound Level (Hi/Med/Lo): 47.5 / 42.0 / 32.0 dB(A)
  • Net Dimensions (WDH): 42.5 x 8.8 x 13.2 Inches
  • Carton Dimensions (WDH): 45.5 x 12.3 x 16.3 Inches
  • Net / Gross Weight: 30.2 / 37.9 Lbs

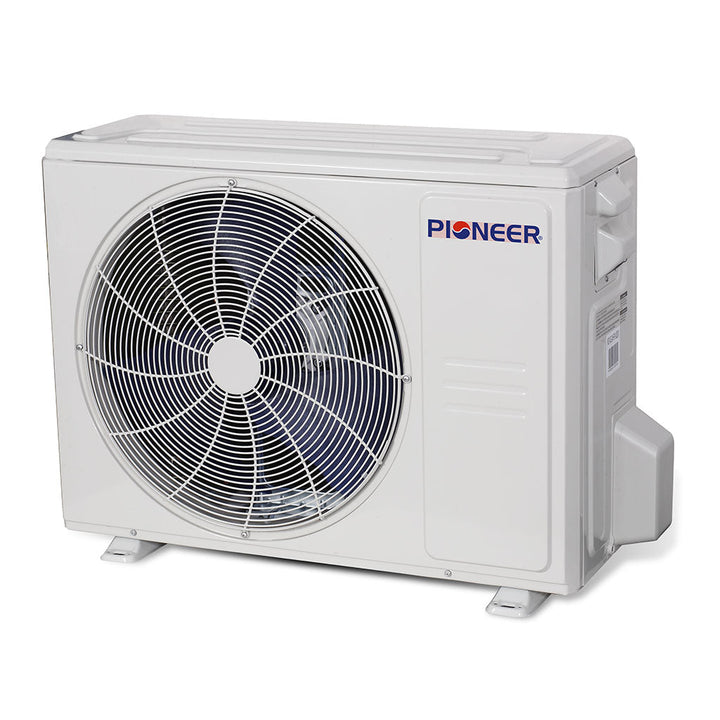

Outdoor Unit Data

  • Part Number: YN024GMFI22RPE
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 61.0 dB(A)
  • Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.8 Inches
  • Net / Gross Weight: 124.8 / 134.9 Lbs

Manuals & Downloads

Installation Kit Options: 16 Ft

16 Ft
50 Ft
25 Ft
WITHOUT INSTALLATION KIT
10 Ft
33 Ft

Type: Wall Mounted

Wall Mounted

Cooling Capacity-BTU: 24000

24000
