Pioneer® Diamante Series 24,000 BTU 18 SEER 230V Ductless Mini-Split Air Conditi

In Stock
$1,699.00 USD
Shipping calculated at checkout.

Overview

Summary

  • High Efficiency Diamante Ductless Mini Split Heat Pump System
  • Cooling capacity: 24,000 BTU/H with 18 SEER/9.5 EER efficiency
  • Heating capacity: 24,400 BTU/H with 10 HSPF/3.0 COP efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $176.00
    • Heating: $516.00
[[SERIES]]

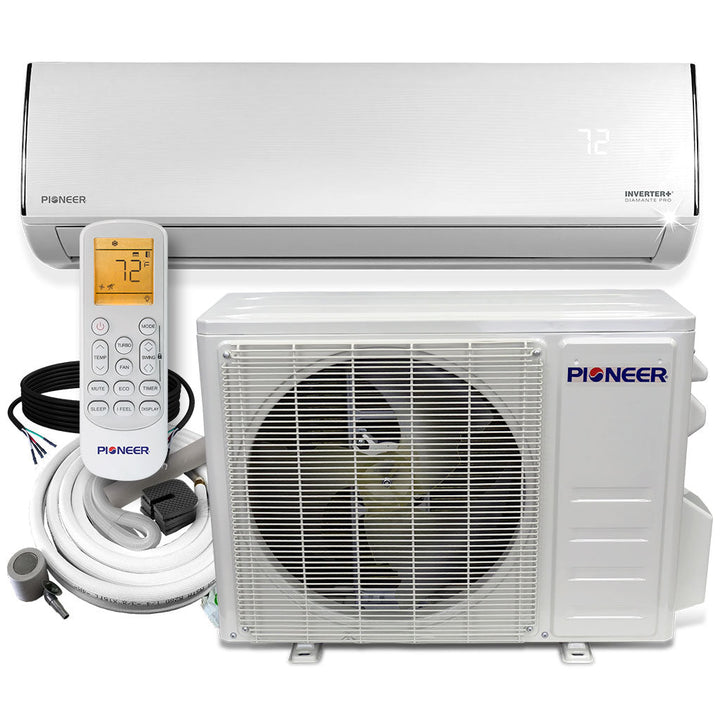

What's Included

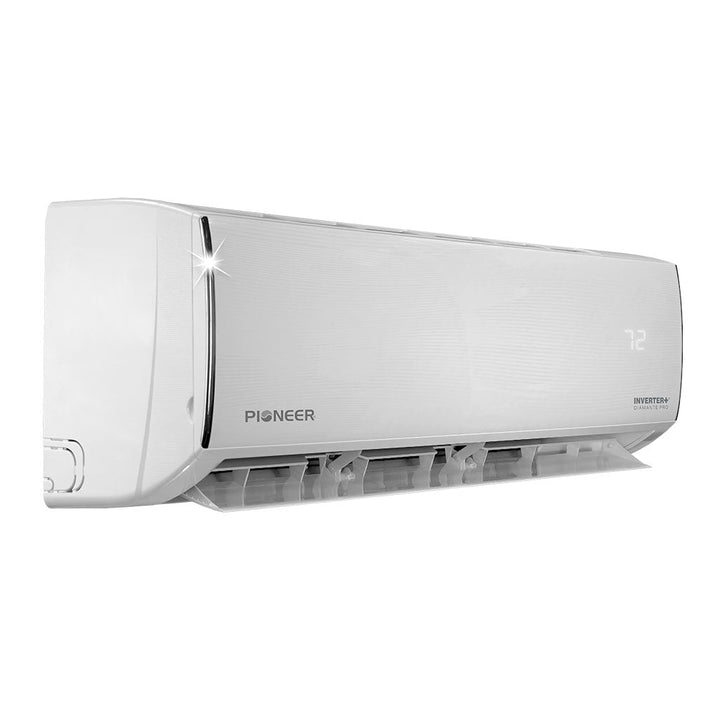

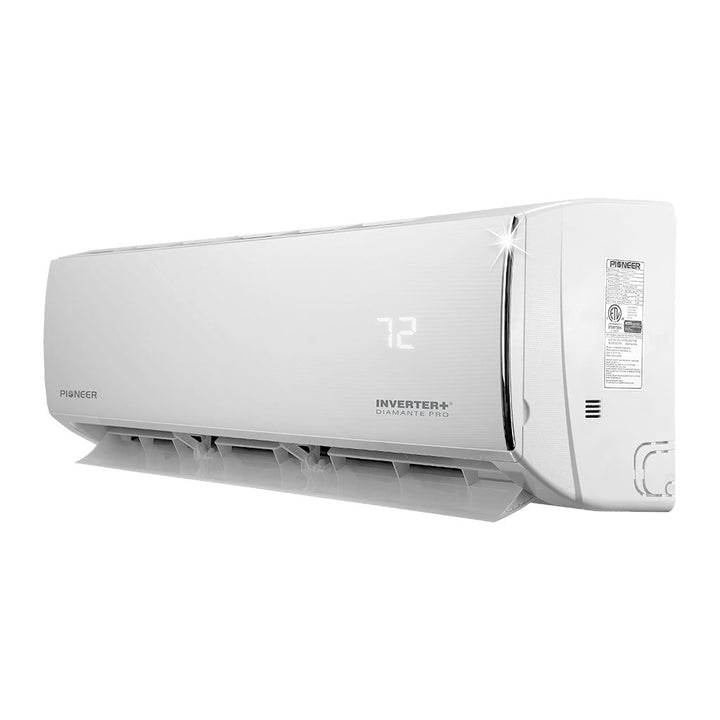

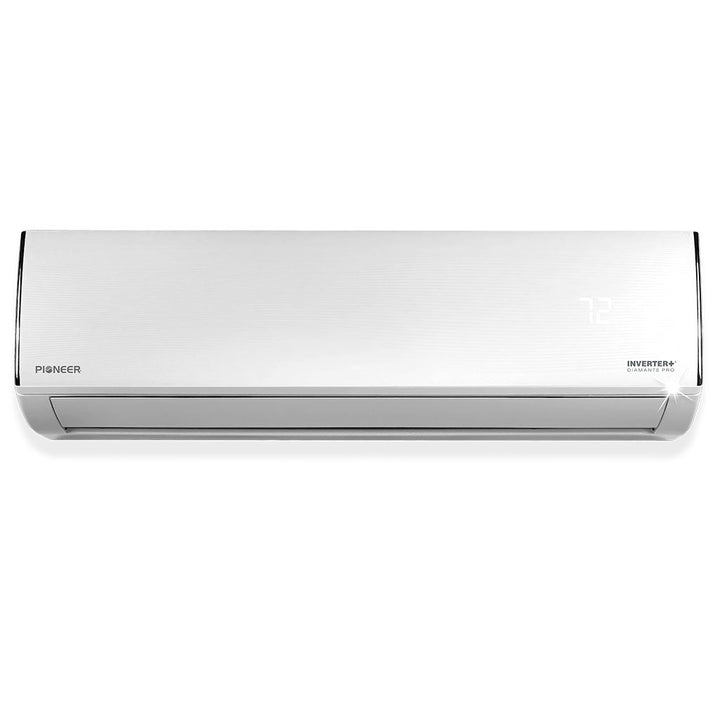

  • Indoor Unit

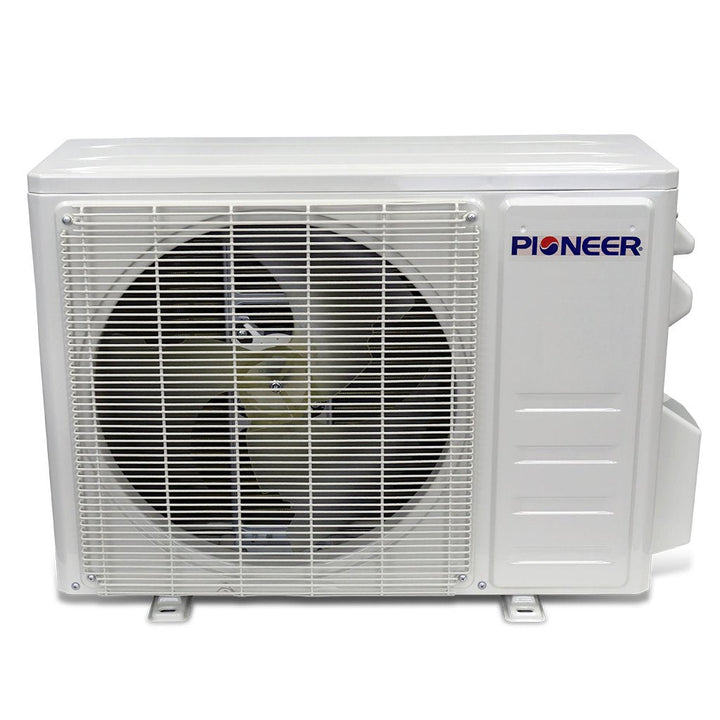

  • Outdoor Unit

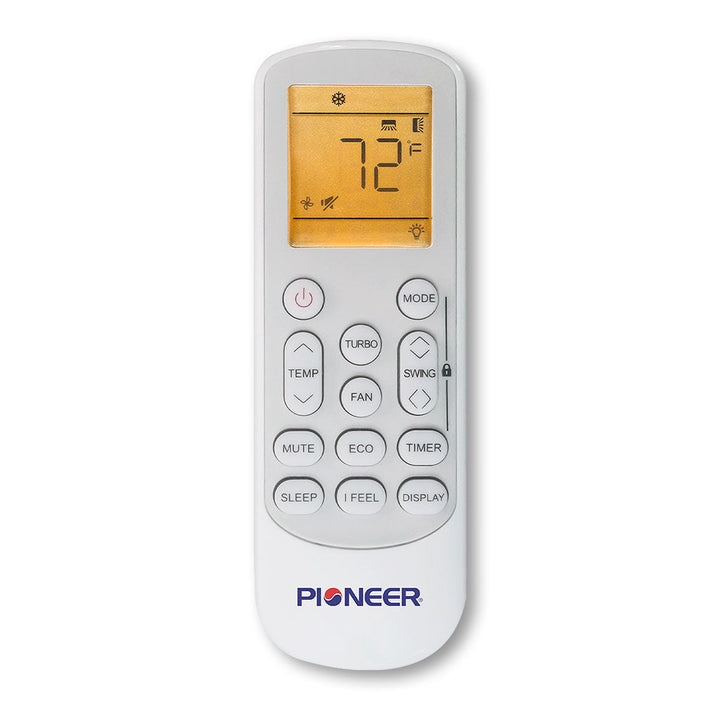

  • Wireless Remote Control (with wall holder and batteries)

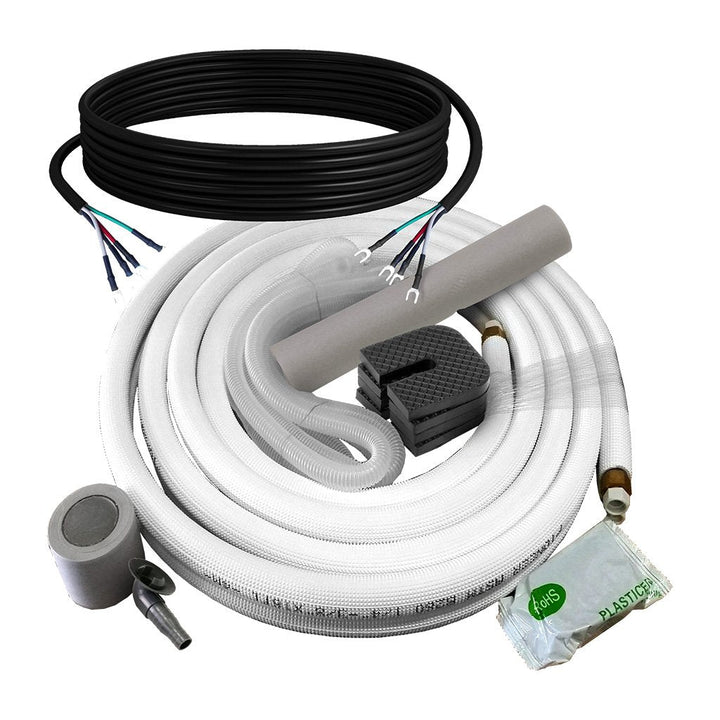

  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years Warranty for Compressor

Features

[[FEATURES]]

Technical Information

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 6,350~31,050 BTU/h
  • Cooling SEER: 18 BTU/w
  • Cooling EER: 9.5 BTU/w
  • Heating Rated Capacity: 24,400 BTU/h
  • Heating Capacity Range: 7,200~25,000 BTU/h
  • Heating HSPF4: 10 BTU/w
  • Heating C.O.P.: 3.0 W/W
  • Refrigerant Type: R410A/50.1 oz.
  • Suitable Area: 550~1000 Sq.F

Indoor Unit Data

  • Part Number: WT024GLFI19HLD
  • Air Flow (Hi/Med/Lo): 847 / 700 / 641 CFM
  • Sound Level (Hi/Med/Lo): 48 / 43 / 38 dB(A)
  • Net Dimensions (WDH): 46-5/8 x 10-1/4 x 13-3/8 Inches
  • Carton Dimensions (WDH): 49-3/4 x 13-1/4 x 16-1/2 Inches
  • Net / Gross Weight: 37.5 / 46.3 lbs

Outdoor Unit Data

  • Part Number: YN024GLFI19RPD
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 58.0 dB(A)
  • Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
  • Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
  • Net / Gross Weight: 95.9 / 107.3 lbs

Manuals & Documents

Cooling Capacity-BTU: 24000

24000

Heating Capacity-BTU: 24400

24400

Type: Wall Mounted

Wall Mounted
