Pioneer® Diamante Series 9,000 BTU 19 SEER 230V Ductless Mini-Split Air Conditio
In StockShipping calculated at checkout.
Overview
Summary
- High Efficiency Diamante Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 19 SEER/11 EER efficiency
- Heating capacity: 10,000 BTU/H with 10 HSPF/3.0 COP efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $63.00
- Heating: $201.00
What's Included

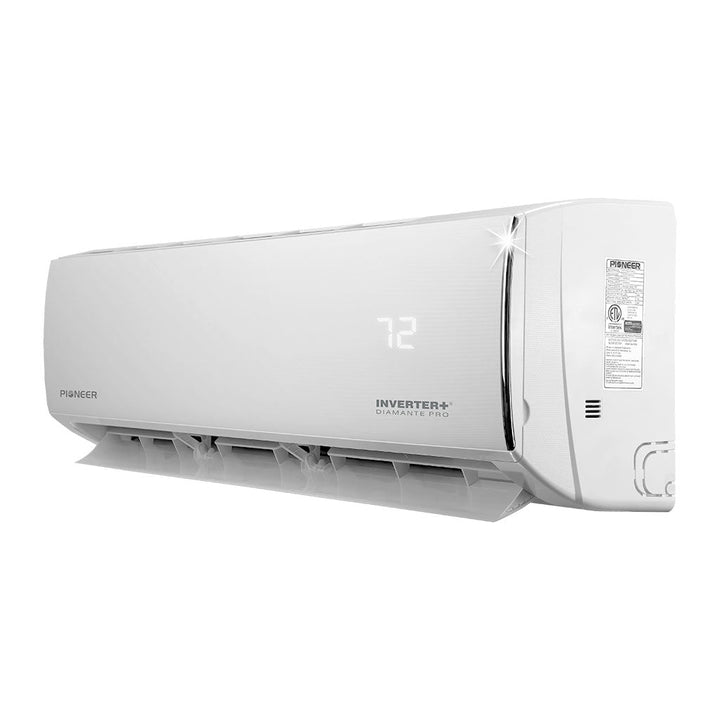

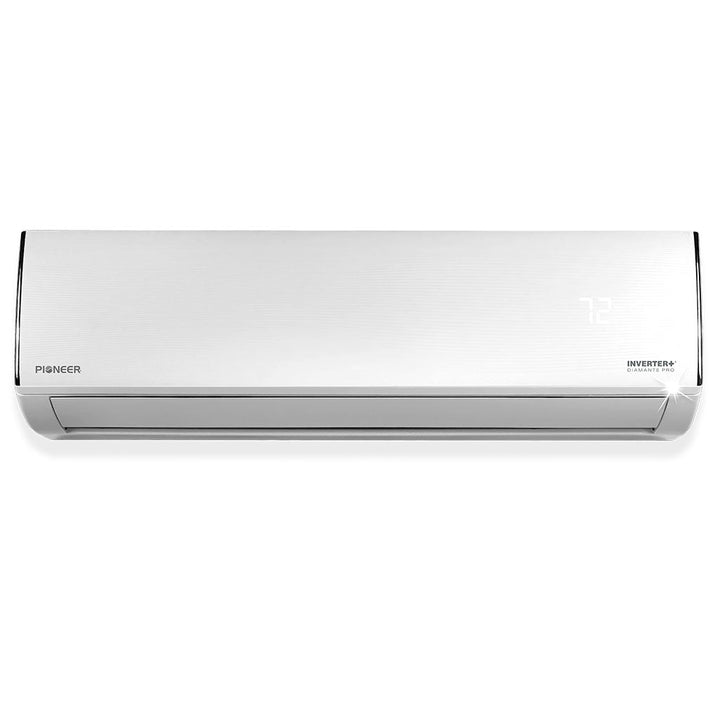

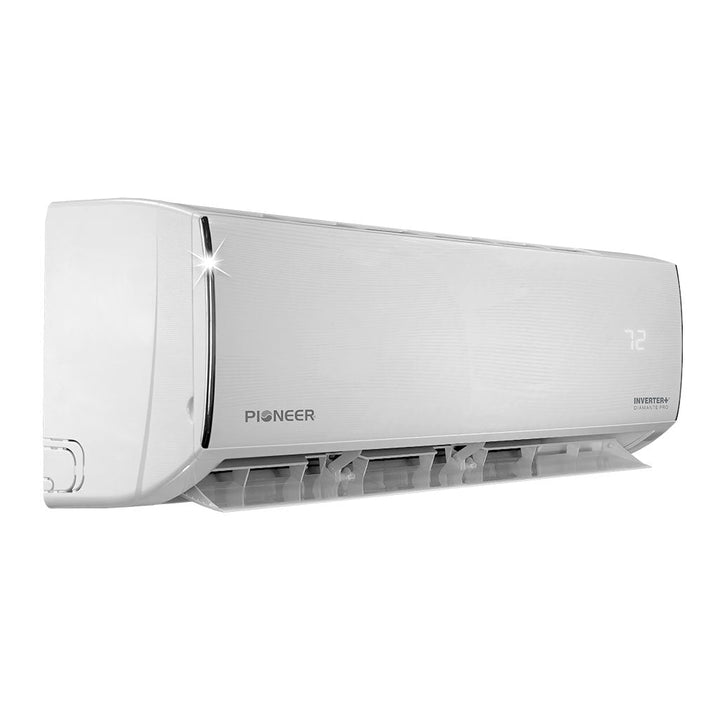

- Indoor Unit

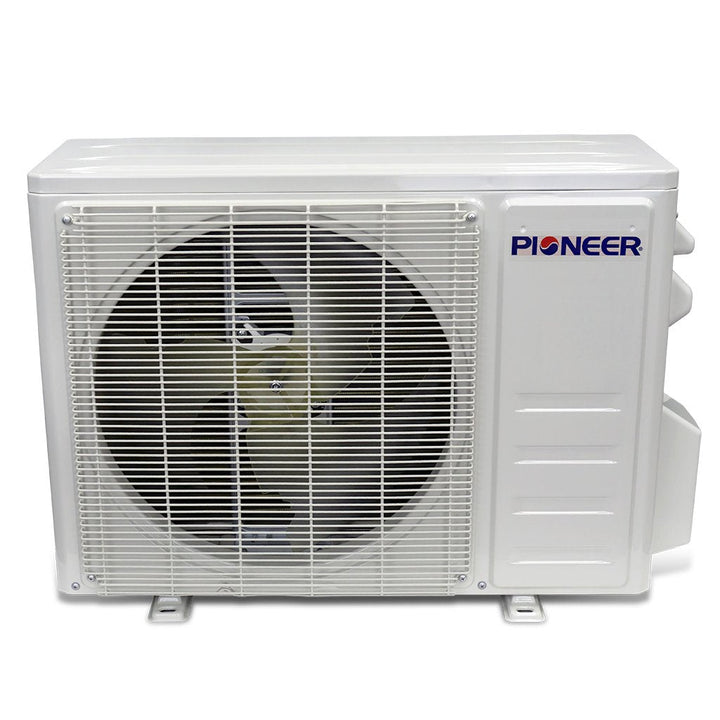

- Outdoor Unit

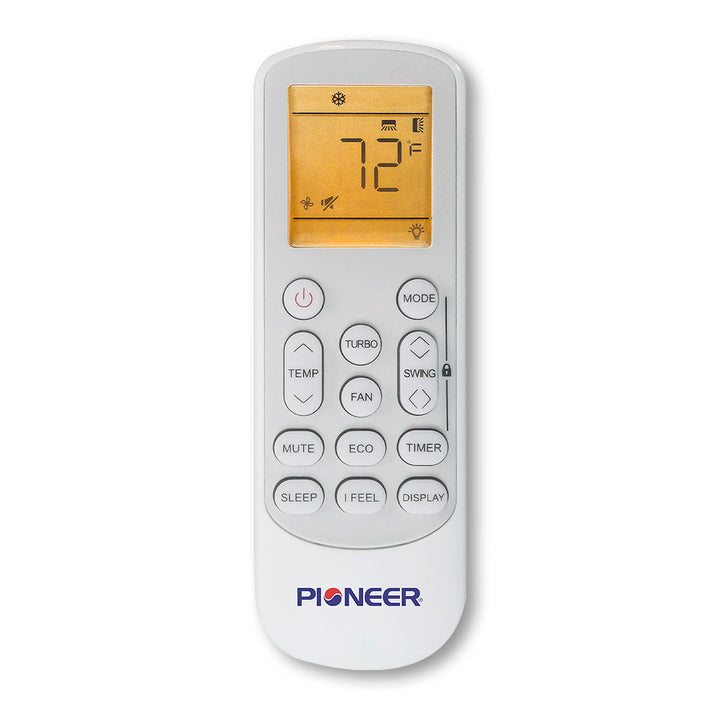

- Wireless Remote Control (with wall holder and batteries)

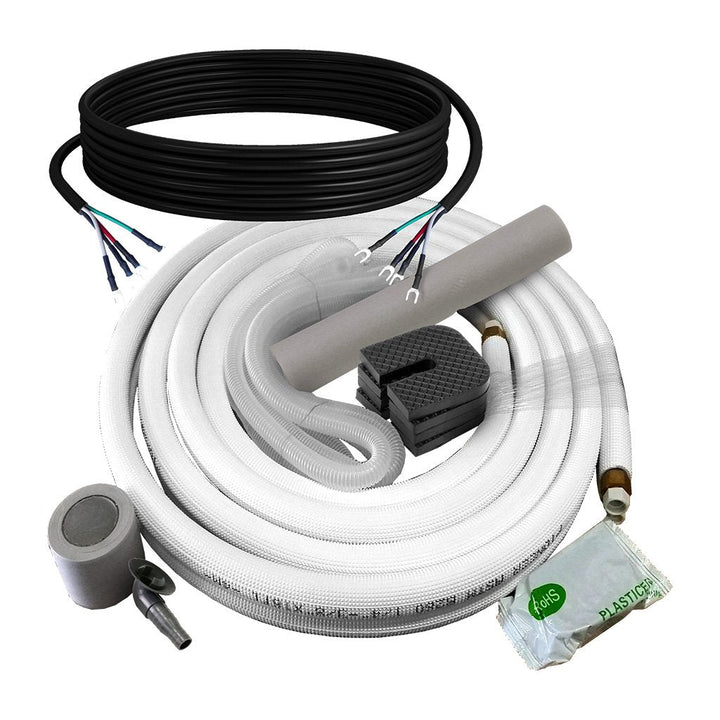

- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years Warranty for Compressor
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 5,800~10,300 BTU/h
- Cooling SEER: 19.0 BTU/w
- Cooling EER: 11.0 BTU/w
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 5,400~10,900 BTU/h
- Heating HSPF4: 10 BTU/w
- Heating C.O.P.: 3.0 W/W
- Refrigerant Type: R410A/850
- Suitable Area: 200~350 Sq.F
Indoor Unit Data
- Part Number: WT009GLFI19HLD
- Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
- Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
- Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
- Carton Dimensions (WDH): 34-7/8 x 11 x 14-3/8 Inches
- Net / Gross Weight: 19.8 / 24.2 lbs
Outdoor Unit Data
- Part Number: YN009GLFI19HLD
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-1/8 x 11-3/8 x 19-5/8 Inches
- Carton Dimensions (WDH): 33 x 13-3/8 x 21-5/8 Inches
- Net / Gross Weight: 54.1 / 63 lbs
Manuals & Documents
Description
Overview
Summary
- High Efficiency Diamante Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 19 SEER/11 EER efficiency
- Heating capacity: 10,000 BTU/H with 10 HSPF/3.0 COP efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $63.00
- Heating: $201.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years Warranty for Compressor
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 5,800~10,300 BTU/h
- Cooling SEER: 19.0 BTU/w
- Cooling EER: 11.0 BTU/w
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 5,400~10,900 BTU/h
- Heating HSPF4: 10 BTU/w
- Heating C.O.P.: 3.0 W/W
- Refrigerant Type: R410A/850
- Suitable Area: 200~350 Sq.F
Indoor Unit Data
- Part Number: WT009GLFI19HLD
- Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
- Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
- Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
- Carton Dimensions (WDH): 34-7/8 x 11 x 14-3/8 Inches
- Net / Gross Weight: 19.8 / 24.2 lbs
Outdoor Unit Data
- Part Number: YN009GLFI19HLD
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-1/8 x 11-3/8 x 19-5/8 Inches
- Carton Dimensions (WDH): 33 x 13-3/8 x 21-5/8 Inches
- Net / Gross Weight: 54.1 / 63 lbs
Manuals & Documents
Pioneer® Diamante Series 9,000 BTU 19 SEER 230V Ductless Mini-Split Air Conditio
$828.00
