Pioneer® 36,000 BTU 17.5 SEER 230V Ductless Mini-Split Inverter+ Air Conditioner

Overview

Summary
• Ultra high efficiency Inverter+ ductless mini split heat pump system
• Cooling capacity: 36,000 BTU/H (17.5 SEER)
• Heating capacity: 36,000 BTU/H (12 HSPF)
• Voltage: 208~230V, 60Hz, 1Ph
• Wall-mounted air conditioning and heating system
• Variable speed DC inverter operation
• Custom-length copper line set with flare connections

AHRI Estimated Annual Operating Costs
• Cooling: $272.00
• Heating: $645.00

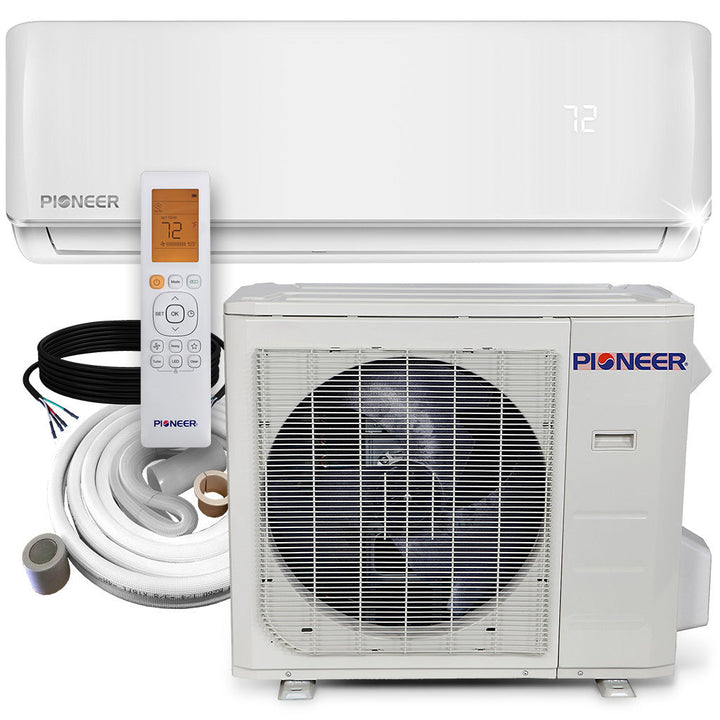

What's Included
• Indoor unit
• Outdoor unit

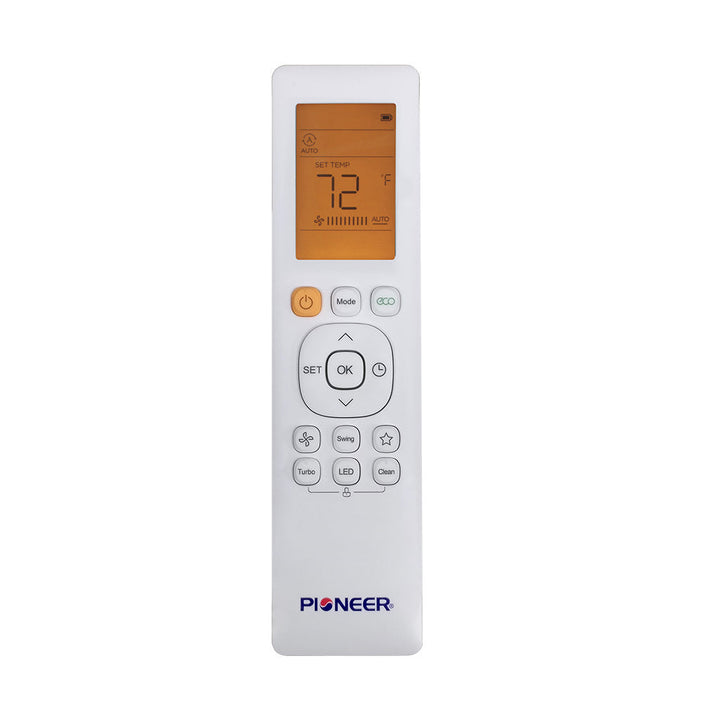

• Wireless remote control

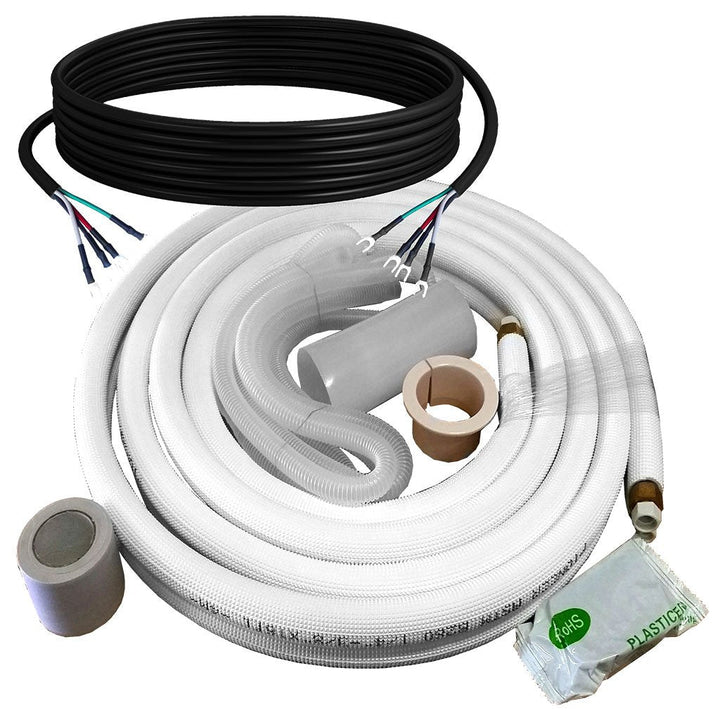

• Installation kit options
• Flare connection leak guard sealer
• Installation manual
• User’s manual
• Manufacturer warranty

Our Guarantee
• 5-year parts limited warranty
• 5-year compressor limited warranty

Features

Technical Information

Certifications

Performance Data
• Power supply: 208~230V, 60Hz, 1Ph
• Cooling rated: 36,000 BTU/h
• Cooling range: 8,900 to 36,300 BTU/h
• SEER: 17.5
• Heating rated: 36,600 BTU/h
• Heating range: 11,400 to 37,800 BTU/h
• HSPF4 / HSPF5: 12 / 8
• Refrigerant: R410A (120 oz)
• Suitable area: 1,000 to 1,250 sq. ft.

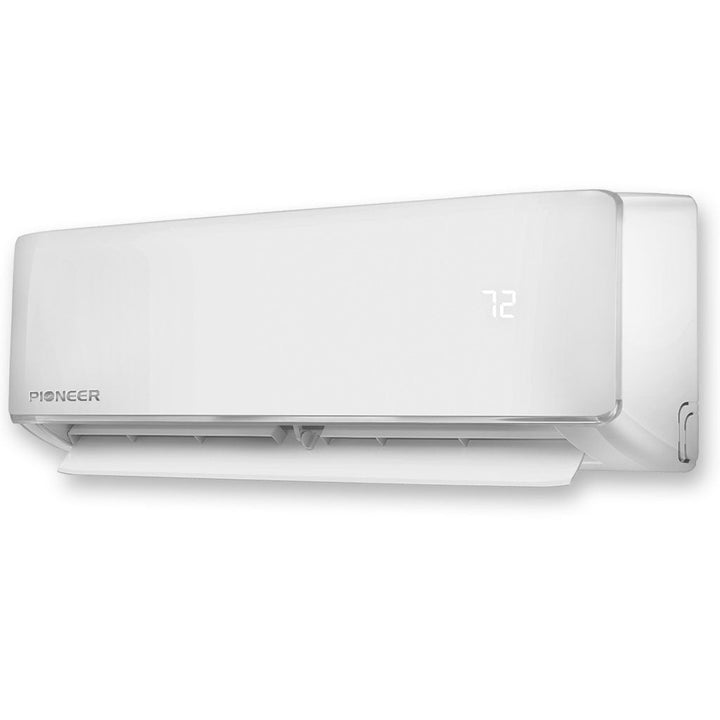

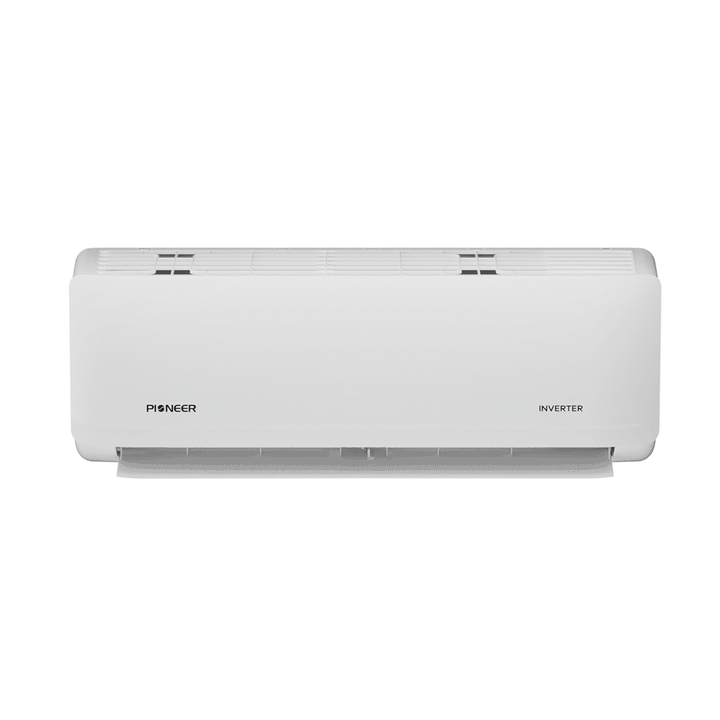

Indoor Unit Data
• Model: WS036GMFI20HLD
• Airflow (Hi / Med / Lo): 732 / 518 / 400 CFM
• Sound level (Hi / Med / Lo): 56.5 / 54.5 / 40 dB(A)
• Dimensions (W x D x H): 49.5 x 11.13 x 14.25 in
• Carton size: 52.75 x 17.75 x 14.25 in
• Weight: 43 lbs (net), 55.5 lbs (gross)

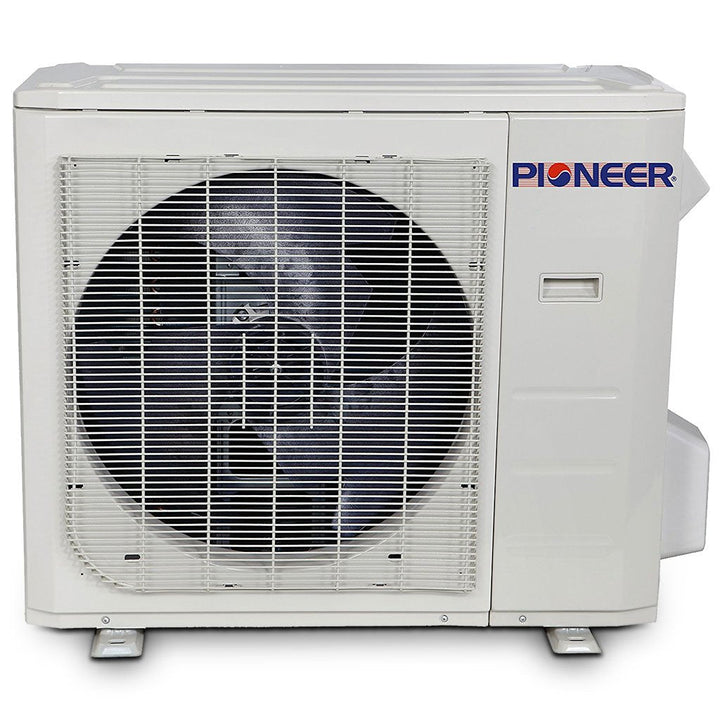

Outdoor Unit Data
• Model: YN036GMFI20RPD
• Sound level: 63.5 dB(A)
• Breaker required: 30A (double-pole)
• Dimensions (W x D x H): 37.5 x 16.5 x 31.88 in
• Carton size: 42.88 x 19.63 x 34 in
• Weight: 143 lbs (net), 153 lbs (gross)

Manuals & Downloads

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
